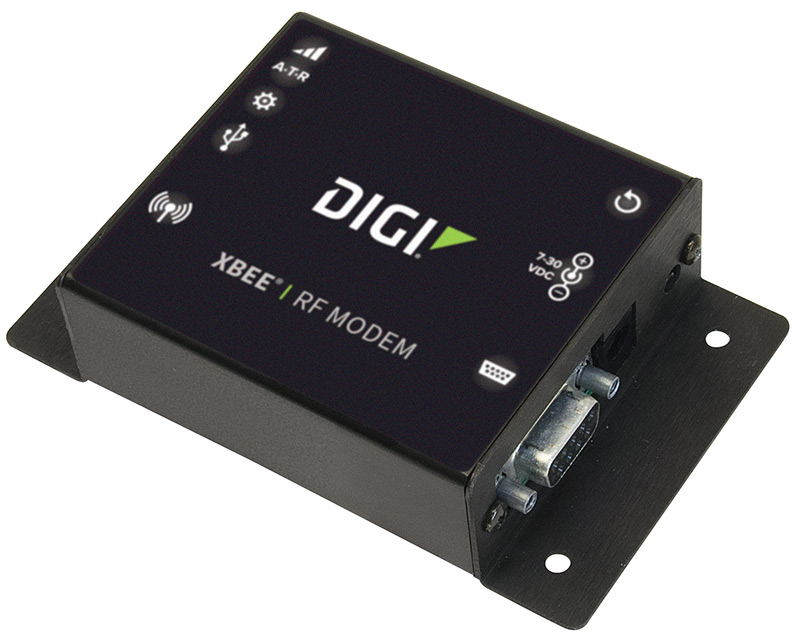

Digi XBee-PRO 900HP RF Modems

900 MHz stand-alone RF modems provide outstanding range (up to 28 miles)* in a reliable wireless solution


  • Industrial design with -40° C to 85° C operating temperature
  • Superior outdoor LOS range of up to 28 Miles*
  • RF data throughput up to 200 Kbps
  • 900 MHz license-free ISM band operation
  • Interface options include RS-232, RS-485, USB and Ethernet
  • DigiMesh® peer-to-peer mesh networking protocol
    • Self-healing and discovery for network stability
  • Includes mini-USB port for simnple device configuration
How to Buy Support

Digi XBee-PRO® 900HP RF modems can be configured in minutes to provide reliable serial cable replacement between many different types of electronic devices. These modems utilize the Digi XBee-PRO 900HP 900 MHz RF module in an enclosure with interface options that include RS-232, RS-485, USB and Ethernet with transmission ranges of up to 28 miles*.

Digi XBee-PRO 900HP RF modems allow the user to easily make their existing wired systems wireless simply by connecting to this product. They take advantage of the DigiMesh® networking protocol, featuring dense network operation using mesh technology.

Digi XBee-PRO 900HP RF modems can wirelessly connect a variety of devices across many applications including remote monitoring, building automation/security, industrial automation/SCADA, fleet management/asset tracking and sensor data capture in embedded systems.

Key Industries

Digital Oil FieldPrecision AgricultureTank MonitoringWater & Wastewater
Download datasheetDownload datasheet User manualsUser manuals & guides User manualsUser manuals & guides Related productsRelated products Add to compareAdd to compare

Compare Sub-Ghz Wireless Products

Compare Sub-Ghz Wireless Products

Related Products

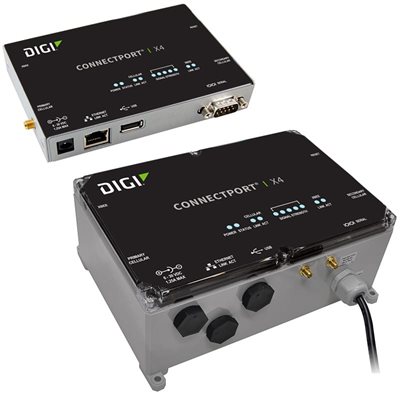

Digi ConnectPort X2 Gateway Digi ConnectPort X2 Gateway Digi ConnectPort X4 Gateway Digi ConnectPort X4 Gateway Digi XBee-PRO 900HP RF Module Digi XBee-PRO 900HP RF Module Digi XCTU Digi XCTU
Specifications Digi XBee-PRO 900HP RF Modems
Performance
Indoor/Urban Range* 200 Kbps: up to 305 m (1000 ft)
Outdoor/RF Line-of-Sight Range* 200 Kbps: up to 6.5 km (4 miles); w/ 2.1 dbi dipole antenna
Transmit Power Output Up to 24 dBm (250 mW) software selectable
Throughput Data Rate 200 Kbps: up to 105.5 Kbps; (when configured as point-to-multipoint)
RF Data Rate 200 Kbps
Interface Data Rate 125-65,0000 bps (software selectable, includes non-standard baud rates)
Receiver Sensitivity 200 Kbps: -101 dBm
Network and Security
Frequency 902-928 MHz (located in the 900 MHz ISM band)
Spread Spectrum Frequency hopping
Supported Network Topologies Mesh, point-to-point, point-to-multipoint, peer-to-peer
Channel Capacity 8 hop sequences share 25 channels, 64 channels available
(there are 64 channels available, of which the user can select 25 that are hopped through in 8 different patterns)
Antenna
Connector RPSMA (Reverse polarity SMA)
Power Requirements
Power Supply 7-30 VDC
Receive Current 60 mA (@ 9 V)
Transmit Current 140 mA (@ 9 V)
Physical Properties
Size 11.4 cm x 7 cm x 2.9 cm (4.5 in x 2.75 in x 1.125 in)
Weight 150 g (5.25 oz)
Data Connection RS-232 female DB-9, RS-485/422 screw terminal, USB Type B, config USB mini-B, 10/100 Ethernet
Operating Temperature Industrial: -40° C to 85° C (-40° C to 185° F)
Regulatory Approvals
FCC Part 15.247 (U.S.A Yes
IC (Canada) Yes
C-TICK (Australia) Yes
RoHS Compliant

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
