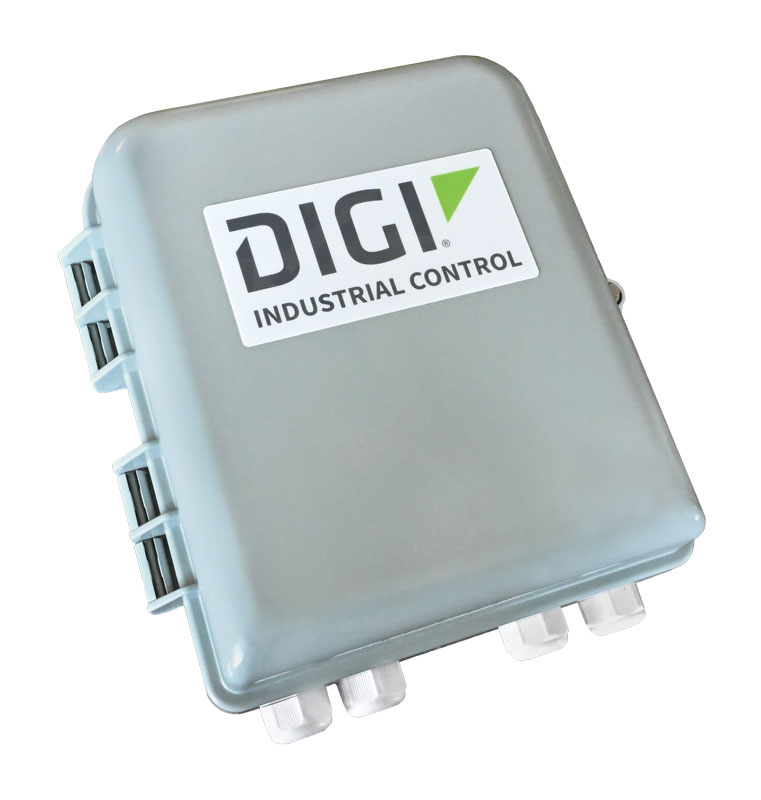

Z45 Remote Management System (RMS) Industrial Controller with NEMA enclosure — cellular

El sistema SCADA completo en una caja con un sofisticado control de automatización tipo PLC en la misma plataforma que proporciona comunicaciones

The Z45 Remote Management System (RMS) comes complete with antennas, a robust power supply and a rugged enclosure built to withstand harsh environments. This all-in-one solution ensures reliable performance in challenging industrial conditions.

Automation Control es una aplicación de software tipo PLC basada en un entorno de desarrollo intuitivo. Las aplicaciones de monitorización y control se despliegan rápidamente con un conjunto de herramientas sin código y basadas en menús que permiten comercializar soluciones mantenibles más rápidamente y a un coste menor que los enfoques de PLC heredados.

Z45 RMS Industrial Controllers interface with a wide range of sensors to bring data seamlessly and quickly into the system for processing. Standard support includes current and voltage for analog data, wet and dry contacts, Modbus RTU and TCP, and other vendor specific protocols.

The Z45 controller securely and efficiently moves data over the network. The controllers are provisioned for use on domestic and international carriers, with cellular, Ethernet and Wi-Fi communication options available.

Whether the Z45 RMS is operating as a communications device or as an application controller, Digi Axess is available to provide a detailed visualization of network, platform, and application operations.

For specialized applications requiring custom coding the Z45 RMS supports a downloadable cross compile development environment, a tested source distribution, and a fully documented tool chain.

Features and Benefits

• Interfaces integradas para el procesamiento de información analógica, digital, hexagonal y de impulsos
• Configuraciones de cliente y servidor Modbus
• Built-in digital and analog inputs, digital outputs
• Network connectivity over USB, Ethernet and serial interfaces
• On-board dashboard display: gauges, indicators and charts
• Self-provisioning devices report to Digi Axess for complete visibility of assets
• LTE coverage on all bands for domestic and international carriers with 3G HSPA fallback
• Aprovisionamiento automático del operador y soporte de conmutación por error de doble SIM

Digi Axess

Your Gateway to Cloud and Edge-Based Remote Monitoring and Control Solutions

Elevate your monitoring and control capabilities with Digi Axess. Whether you prioritize edge-based control or the flexibility of cloud-based monitoring, Digi Axess serves as your unified platform, offering an intuitive interface to streamline data management for enhanced operational efficiency.

Unlock simplified automation control at the edge, with our built in functions and logical operators to enable:

• Dynamic scheduling: customize tasks for peak efficiency using real-time data
• Conditional actions: trigger tailored responses based on complex conditions
• Adaptive control: optimize performance and adjust parameters based on feedback

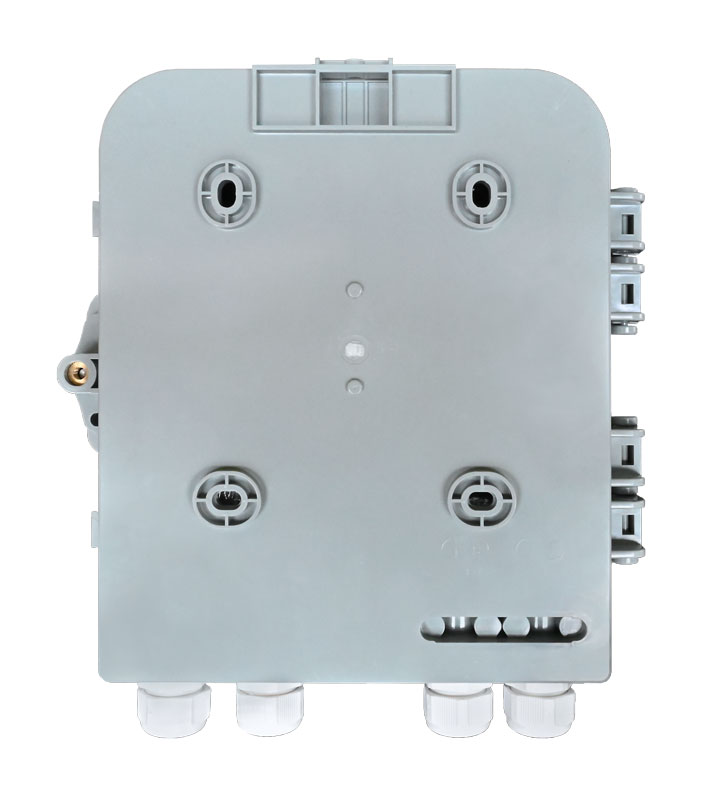

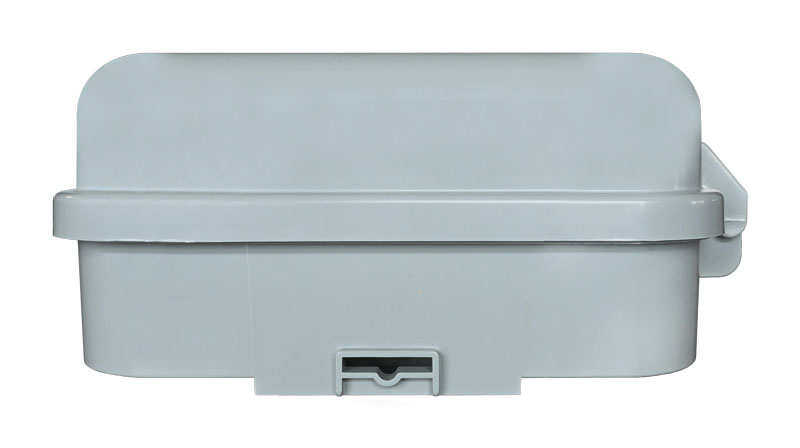

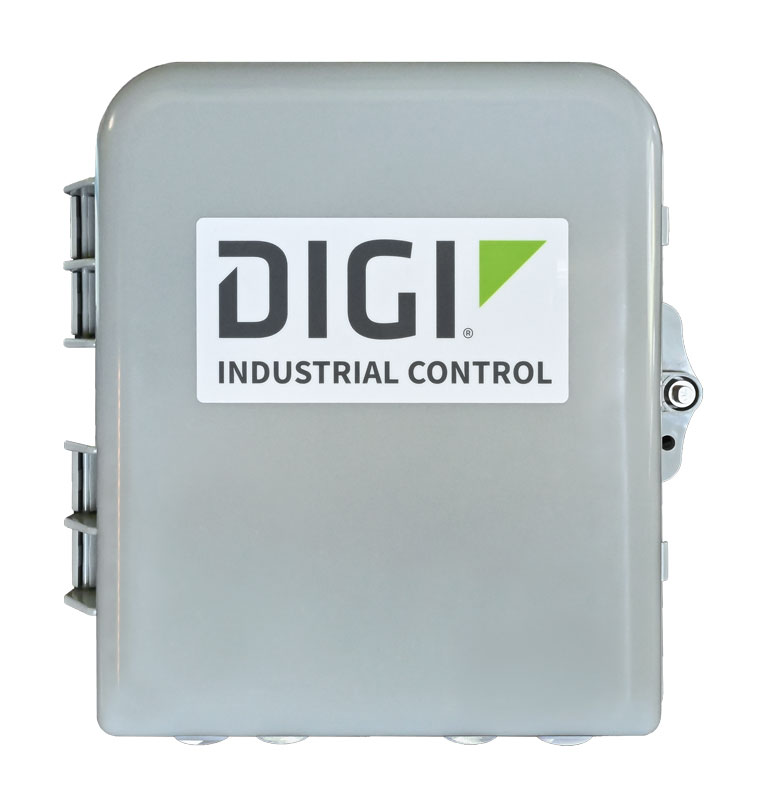

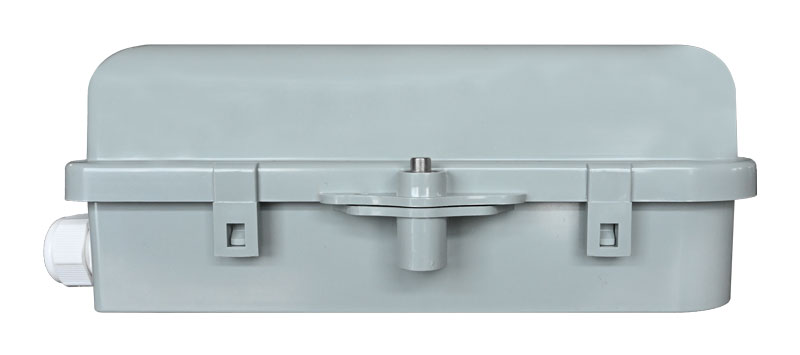

Z45 RMS Industrial Controller NEMA Enclosure

• NEMA enlosure features:
  • Waterproof and UV stable
  • RF transparent for wireless devices

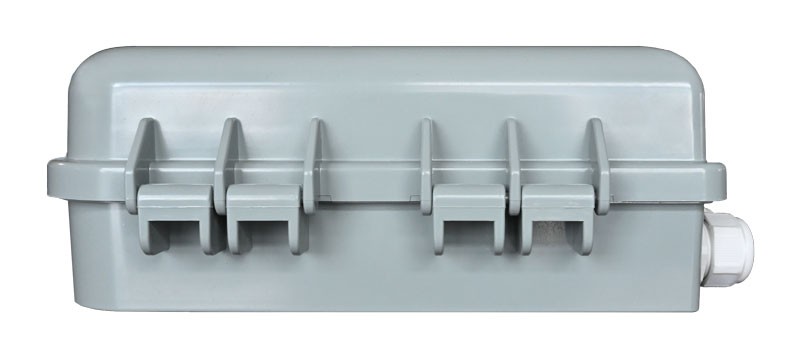

  • Gasketed lid with dual latches
  • Tamper-proof locking screw with key and provision for padlock
• Material / color: Polycarbonate + ABS
• Dimensions: Outer: 276 mm x 252 mm x 106 mm) 10.9 x 9.2 x 4.2 in); Inner: 191 mm x 165 mm x 83 mm (7.5 in x 6.5 in x 3.3 in)
• Weight: 0.6 kg (1.5 lb)
• Ratings / flame rating: Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
• Included power supply: Power supply — DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100 - 240 VAC 50/60 hz

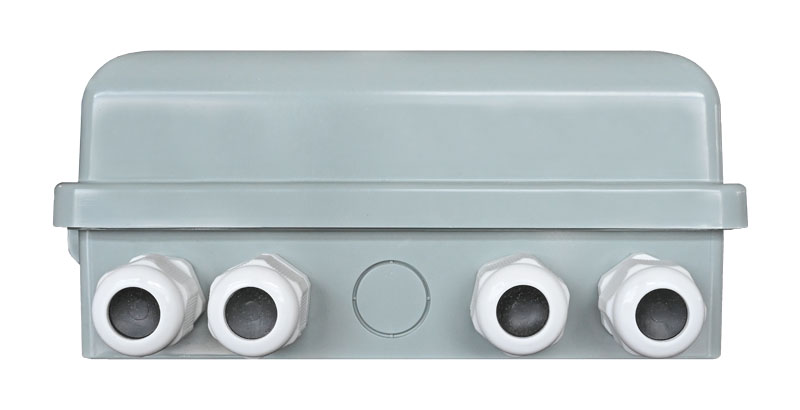

• Included cable glands: (4) M23 x 1.5
• Included antennas: (2) Antenna mounted inside enclosure (multiband, 4G / 3G / 2G, GPS, flex/strip, SMA)
• Included mount kit: Mount kit — DIN rail

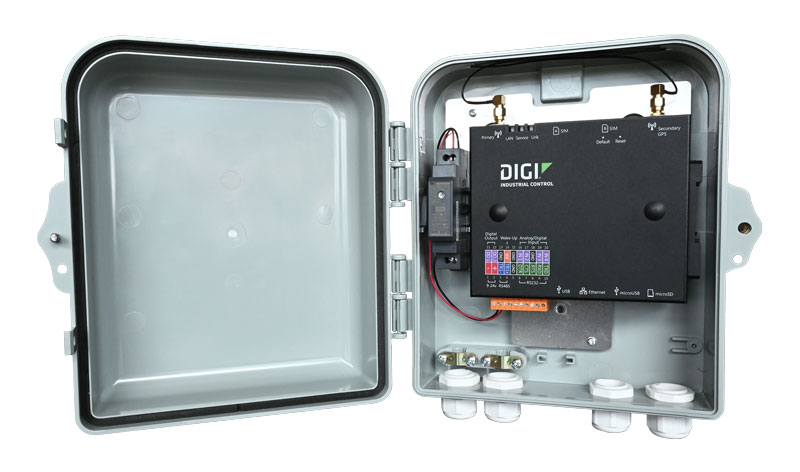

Z45 Remote Management System (RMS) Industrial Controller

• Interfaces integradas para el procesamiento de información analógica, digital, hexagonal y de impulsos
• Tecnología celular:
  • Bandas LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G: B1, B2, B3, B4, B5, B8
  • Multiportadora, autoconfiguración
  • Dual-SIM (2FF)
  • Soporte de diversidad DL MIMO/Rx
  • (1) 50 Ω SMA (clavija central: macho)
• Approvals:
  • FCC, IC, CE, PTCRB
  • Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus; visit product certifications for latest cellular certifications
• Localización de la posición: GPS, GLONASS
• Interfaces de acogida:
  • 10/100 Ethernet RJ-45
  • (1) RS-232 (bloque de terminales)
  • (1) RS-485 (bloque de terminales)
  • (1) USB de alta velocidad (tipo A)
  • (1) Micro-USB OTG de alta velocidad
• Entrada/salida:
  • (4) User configurable, digital/analog inputs (0 - 5 V / 4 - 20 mA)
  • (2) Salidas digitales (ampliables con el módulo de E/S Z1201)
• La memoria:
  • 128 MB DDR2 RAM
  • 256 MB de flash NAND SLC
  • (1) Ranura MicroSD (accesible externamente)
• Plataforma:
  • Sistema operativo Linux 4.xx
  • Procesador Atmel ARM9
  • Gestor web 2.0
  • Digi Axess
  • Aplicación de automatización
• Power: 9 - 24 VDC input, 190 mA consumption (typical - Ethernet not connected, varies with signal level)
• Operating temperature: −30° to 70° C (−22° to 158° F)
• Dimensiones: 13,92 x 11,99 x 3,68 cm (5,48 x 4,72 x 1,45 in)
• Garantía: 3 años de garantía estándar
• Accesorios disponibles:

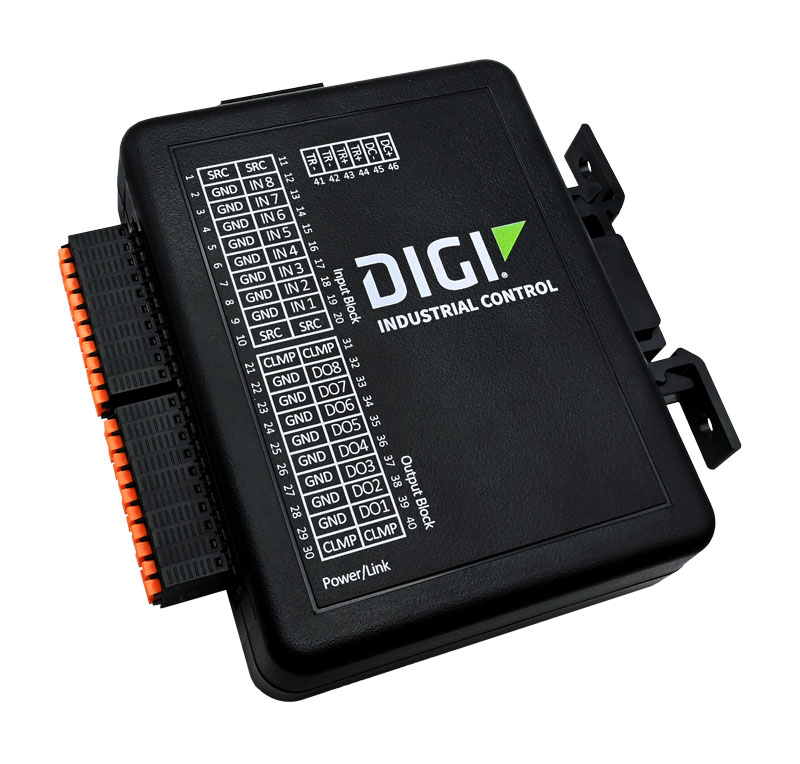

  • Multifunction I/O Controller — CTK-Z1201

¿Qué hay en la caja?

• Z45 Remote Management System (RMS) Industrial Controller with NEMA enclosure — cellular
  • Included power supply: Power supply — DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100 - 240 VAC 50/60 hz
  • Included cable glands: (4) M23 x 1.5
  • Included antennas: (2) Antenna mounted inside enclosure (multiband, 4G / 3G / 2G, GPS, flex/strip, SMA)
  • Included mount kit: Mount kit — DIN rail
