Digi IX40 5G Edge Computing Industrial IoT Solution

Now with Digi 360

5G edge computing industrial IoT cellular router solution, purpose-built for Industry 4.0

Digi Remote Manager multiscreen - light mode

Global 5G and LTE support and certification on major carriers
Integrated industrial edge computing capabilities for hosting containerized applications and custom solutions
Support for CBRS and global private 5G networking deployments
Ethernet, SFP, serial, I/O and Modbus bridging
Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots
GNSS receiver supporting GPS, GLONASS, BeiDou and Galileo
License-free enterprise software: VPN, firewall, logging and authentication
Rugged enclosure with options for DIN rail or shelf mounting
Includes the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management
Access to Digi value-added services, including Digi Containers for powerful, cost-efficient applications and Digi WAN Bonding for WAN aggregation and immediate failover

How to Buy Support

Overview Part Numbers & Accessories Specifications Related Content Applications

Digi IX40 is a 5G edge computing industrial IoT router solution to empower rapid processing, analysis, and integration of industrial asset data on 5G public and private cellular networks — easy to deploy and centrally managed via Digi Remote Manager® (Digi RM), which is included in your Digi 360 solution.

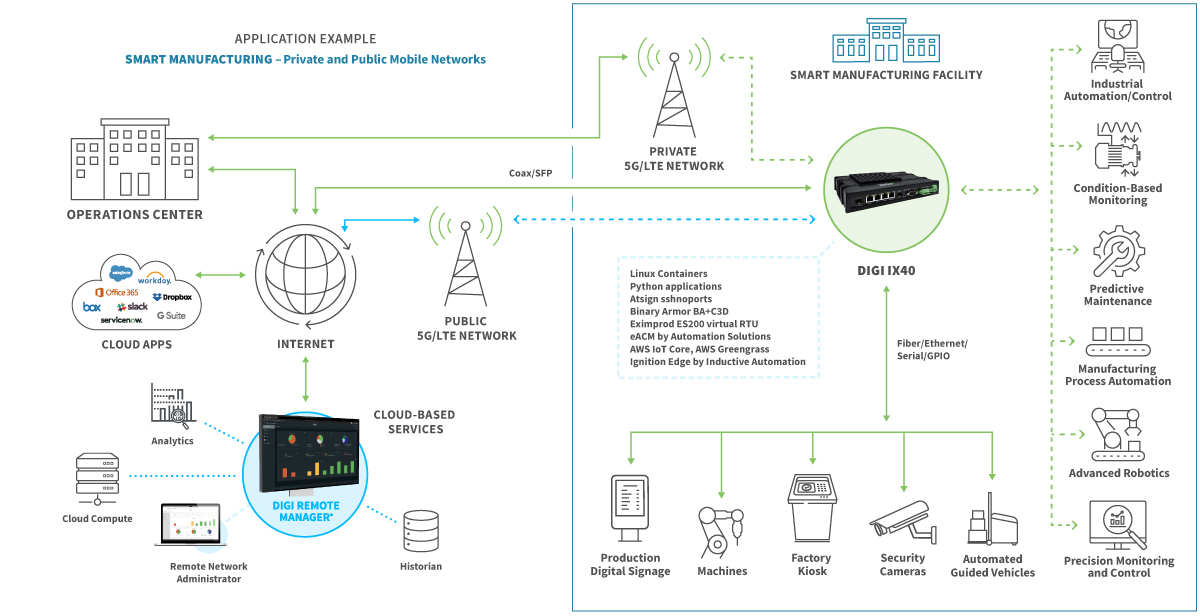

Purpose-built for Industry 4.0, Digi IX40 supports the 5G connectivity and edge intelligence needed to enable numerous use cases ranging from predictive maintenance and asset monitoring to machine learning and advanced robotics. It seamlessly connects multiple machines, whether wired or wireless, in the most demanding environments, optimizing integration of cloud-delivered operational technology (OT) services with information technology (IT) to streamline complex operations and scale IT infrastructure.

With its all-in-one design, strong computing power and integrated memory, Digi IX40 offers substantial capabilities for real-time data processing, edge computing and advanced precision while reducing complexity and total cost of ownership. Digi Containers facilitate potent and cost-effective applications, providing additional flexibility and scalability for Industry 4.0, energy, smart cities and other uses.

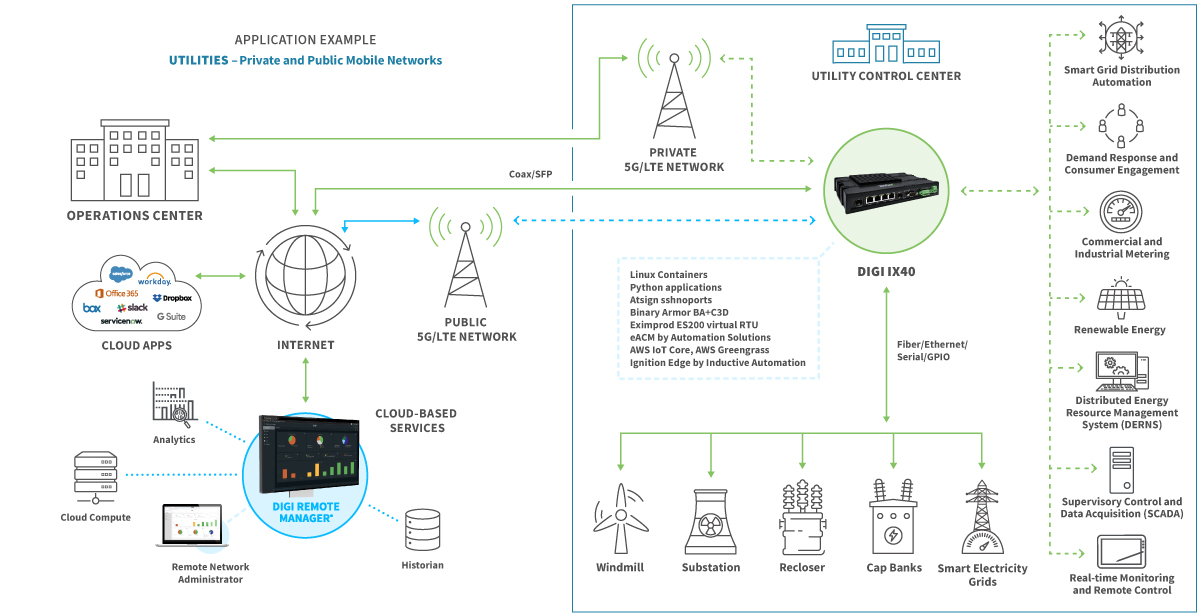

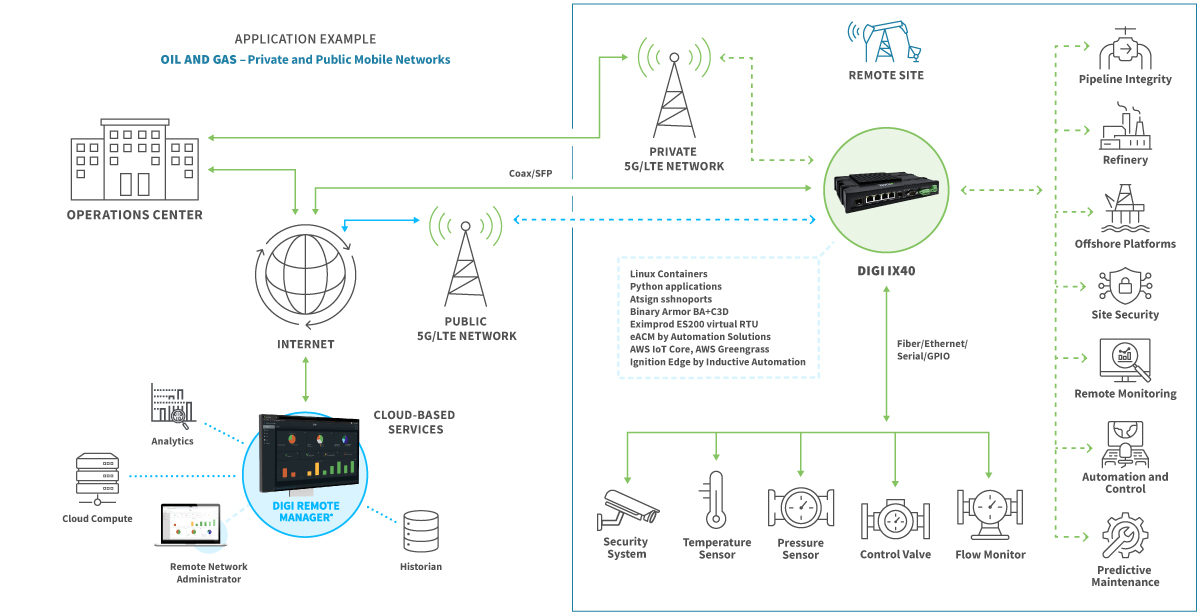

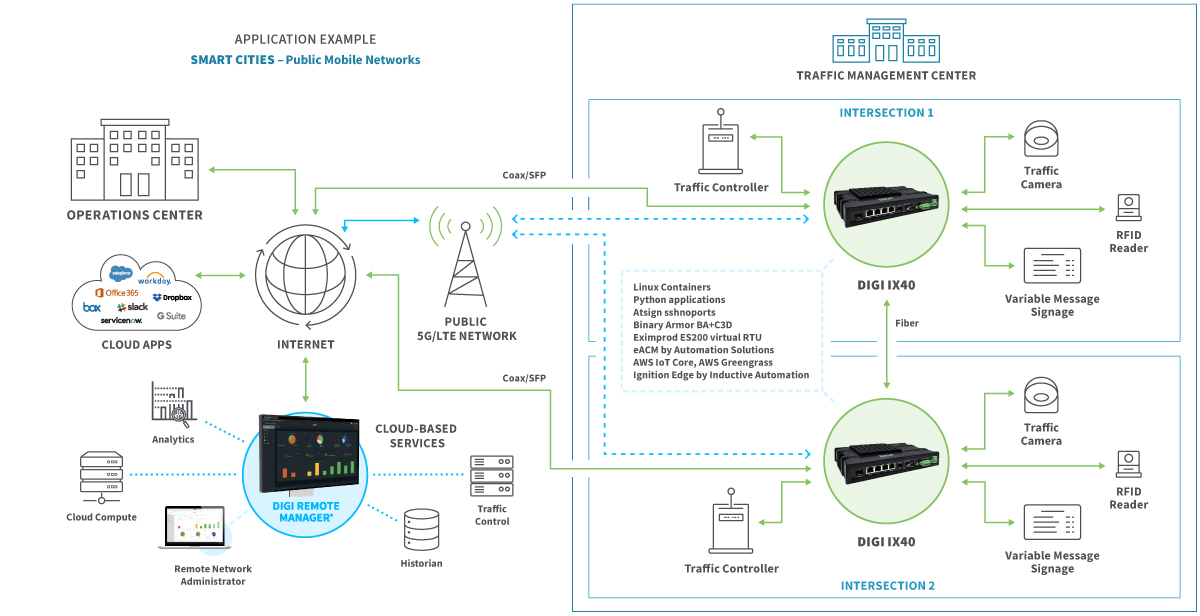

The Digi IX40 solution offers FirstNet Capable™ models designed to meet the demands of critical applications where reliability is essential for industrial use cases and emergency response. Additional use cases for Digi IX40 include manufacturing process automation, precision monitoring and control, industrial automation, utilities and traffic management.

Gain critical insights and manage your network with Digi RM — the cloud-based command center for your deployment. Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.

Download datasheet

User manuals & guides

Now With Digi 360

Digi 360 offers comprehensive cellular solutions, including purpose-built devices, software and services, to help customers optimize their IoT investments and maximize ROI. These complete solutions are designed to simplify IoT complexity, and ease the challenges enterprises face in configuring, deploying and managing their IoT initiatives.

Management

Device

Customer Care

Warranty

Learn More

Introducing Digi WAN Bonding

Digi WAN Bonding combines multiple connections into a seamless and resilient connectivity solution that ensures optimal performance and maximum uptime anywhere around the world.

Learn More

Watch the
Video

Introducing Digi Containers

Managing the increasing complexity of IoT applications just got easier. Meet Digi Containers, a value-added service available as an add-on to a Digi Remote Manager® license. The Digi Containers service puts you in control, and helps you simplify your operations.

Watch the Video Learn More

Compare Industrial Routers

Take Command.

Your Network. Your Way.

Watch the Video

Manage Your Network Your Way

Remote device management: network-wide updates, data insights and control. Digi Remote Manager delivers centralized visibility and automates processes at your command, with actionable 24/7 remote monitoring.

Automated Network Monitoring

To keep tabs on dozens, hundreds or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.

Configuration Management

Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security.

Firmware Updates

Today's IoT devices are smarter, more feature rich, and have more tasks to perform at the edge. And they are not static. You may need to update firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.

Detection and Troubleshooting

Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.

Related Products

Digi IX20 Industrial 4G LTE Router

Digi IX30 Industrial Cellular Router

Digi IX10 Industrial Cellular Router

Digi Remote Manager

Digi Containers

Digi WAN Bonding

Digi IX40 with Digi 360
	New Digi IX40 — 5G with LTE-Advanced Pro Cat 19 4x4 and 3G fallback, quad Ethernet, R-232/422/485, GNSS, FirstNet Capable™	IX40-05	How to Buy
	Coming soon Digi IX40 — 4G LTE-Advanced Pro Cat 12 with 3G fallback, quad Ethernet, RS-232/422/485, GNSS	IX40-04	Contact Us


New Digi IX40 5G Industrial Starter Kit — includes 30 W power supply and 4 wideband cellular antennas	76002147	How to Buy
New Digi LTE Industrial Starter Kit — includes 30 W power supply and 2 wideband cellular antennas	76002148	How to Buy
DIN rail mounting bracket kit	76002093	How to Buy


Digi 360 extension SKU for 2 additional years, for the Digi IX40 product line	DIGI360-IX40-EXT-2YR	How to Buy
Digi 360 extension for 4 additional years, for the Digi IX40 product line	DIGI360-IX40-EXT-4YR	How to Buy
Digi 360 renewal for 1 additional year, for the IX40 product line	DIGI360-IX40-REN-1YR	How to Buy
Digi 360 renewal for 3 additional years, for the IX40 product line	DIGI360-IX40-REN-3YR	How to Buy
Digi 360 renewal for 5 additional years, for the IX40 product line	DIGI360-IX40-REN-5YR	How to Buy

Digi Remote Manager
	Digi Remote Manager Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.		Get Started

Value-Added Services
	Digi Containers Digi Remote Manager enables deployment of custom applications via containers		Get Started
	Digi WAN Bonding Resilient connectivity and maximum performance across multiple connections		Get Started

SPECIFICATIONS	Digi IX40 with Digi 360*
WIRELESS INTERFACES
CELLULAR / WWAN**
IX40-05: 5G NSA, 5G SA***, 4G LTE-ADVANCED PRO CAT 19	5G NR bands: n1, n2, n3, n5, n7, n8, n12, n13, n14 FirstNet®, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79; 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48, B66, B71; 3G bands: B1, B2, B3, B4, B5, B6, B8, B19
IX40-04: 4G LTE-ADVANCED PRO CAT 12, 3G HSPA+	4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71; 3G bands: B1, B2, B4, B5, B6, B8, B9, B19
CONNECTORS	(2) or (4) 50 Ω SMA; center pin: female
SIM SLOTS	(2) Nano-SIM (4FF) holders
SIM SECURITY	SIM slot cover plate included
GNSS
TECHNOLOGY	GPS Gen 9 with band L1 LNA for passive antenna use
ANTENNA	Upper L-band: GPS L1; Glonass G1; Beidou B1; Galileo E1 IX40-04: supports passive GNSS antennas rated at 1.5 to 3 dBi only IX40-05: supports passive GNSS antennas rated at 1.5 to 3 dBi or active antennas with 7.5 to 26 dB gain
PROTOCOL	NMEA 4.11 and TAIP
CONNECTOR	(1) 50 Ω SMA; center pin: female
WIRED INTERFACES
ETHERNET
PORTS / CONNECTOR	(4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN
I/O
PORTS / CONNECTOR	(2) Digital input/outputs; (2) analog inputs (0 - 10 V; 4 - 20 mA; 12-bit resolution)
SFP
PORTS / CONNECTOR	(2) 1 Gb capable SFP sockets
SERIAL
PORTS / CONNECTOR	(1) RS-232/422/485; DB-9 male (DTE)
SOFTWARE & MANAGEMENT*
REMOTE MANAGEMENT	Digi Remote Manager (cloud based); SNMP v1/v2c/v3 (user installed/managed), SMS
LOCAL MANAGEMENT	Web UI (HTTPS); CLI (SSH, serial)
MANAGEMENT TOOLS	SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog
PROCESSOR
APPLICATION PROCESSOR	1.6 GHz quad-core i.MX 8M Plus ARM® Cortex®-A53 processor
MEMORY
RAM / FLASH	1 GB / 8 GB
PHYSICAL
DIMENSIONS (L X W X H)	234 mm x 154 mm x 41 mm (9.21 in x 6.06 in x 1.61 in)
WEIGHT	1.14 kg (2.51 lb)
STATUS LEDS	Power, WWAN, Ethernet (link, activity)
ENCLOSURE/RATING	Glass-filled polyphenylene sulphide / IP30 −40 °C to 85 °C (−40 °F to 185 °F)
POWER REQUIREMENTS
POWER INPUT	12 to 30 VDC, reverse polarity protection
POWER CONNECTOR	Screw down removable terminal block
POWER CONSUMPTION	4.5 W (light traffic), 8 W (peak data), 3.5 W (idle traffic)
ENVIRONMENTAL
OPERATING TEMPERATURE	−40 °C to 75 °C (−40 °F to 167 °F); reduced cellular performance may occur above 70 °C (158 °F)
STORAGE TEMPERATURE	−45 °C to 85 °C (−49 °F to 185 °F)
RELATIVE HUMIDITY	0% to 95% (non-condensing) at 25 °C (77 °F)
APPROVALS**
CELLULAR	PTCRB, AT&T, FirstNet Capable™, T-Mobile, Verizon;
SAFETY / SECURITY	IEC 62368-1, CB scheme, FIPS 140-2
EMISSIONS / IMMUNITY	FCC Part 15 Subpart B, ISED, CE, RED, UKCA
WARRANTY****
PRODUCT WARRANTY	1-year

*Includes the Digi 360 solution for Digi IX40 (1-year) with Digi Remote Manager, warranty and customer care.
**Visit product certifications for latest approvals and updates.
***Contact your network operator regarding 5G SA support on their network. Digi IX40-05 supports up to 2xCC (2x 5G SA Carrier Components).
****Product warranty can be extended with Digi 360 extensions or renewals.

ENTERPRISE SOFTWARE	DESCRIPTION
PROTOCOL SUPPORT	HTTPS, TLS, SCP (client and server), SFTP, SNMP (v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS, Dynamic DNS client compatible with No-IP/DynDNS; Captive portal, Intelliflow; Nagios, DNS server, NTP server, Multicast, mDNS, IPerf
SECURITY / VPN	IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSLv3, FIPS 197, Open VPN client and server; L2TP; VPN tunnels; cryptology: SHA-1, MD5, RSA; encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); authentication: RADIUS, TACACS+, SCEP for X.509; certificates; content filtering (via 3rd party); MAC address filtering; VLAN support
ROUTING	IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, BGP, iGMP routing (multicast); IP failover: VRRP, VRRP+TM; automatic failover/failback to second GSM network/standby APN; Digi SureLink®
EMISSIONS / IMMUNITY	DHCP; Dynamic DNS client compatible with No-IP/DynDNS; QoS via TOS/DSCP; Modbus UDP/TCP to serial; Modbus bridging for connecting diverse field assets
