Digi Connect EZ

New

Click-to-connect | Modern, secure serial connectivity that boots in seconds, configures in minutes and runs for years


  • 1, 2 or 4 software-selectable RS-232/422/485 serial ports to connect a wide variety of serial equipment over IP networks
  • 10/100/1000 Ethernet (dual Ethernet on 2- and 4-port), with optional Wi-Fi, industrial temp, C1D2 rating and LTE
  • Ideal for applications requiring COM ports, serial tunneling or TCP/UDP sockets
  • Optimizes performance for the widest range of industry standard and device-specific protocols
  • Built-in Digi TrustFence® for device security, secure encrypted connections, ongoing monitoring and support
  • Easy setup and mass configuration with Digi Navigator™ and Digi Remote Manager®
How to Buy

Most companies are not replacing their equipment — they are updating the way they talk to it. Digi Connect® EZ modernizes operational infrastructure with expanded network connectivity and functionality for today’s applications. It is designed to meet the demands of a wide range of critical serial applications including connecting to automation, robotics control, centralized device management, data acquisition and point-of-sale equipment.

Digi Connect EZ is a click-to-connect solution with 1, 2 or 4 serial ports, software-selectable for 232/422/485 communication, as well as optional LTE, Wi-Fi and industrial specifications (C1D2). It takes only a few minutes to configure with intelligent, use-case based options so that you can quickly install without having to modify your equipment or applications.

Digi simplifies key security requirements for critical infrastructure and distributed systems with enhanced access control, management and configuration capabilities. Digi Connect EZ and built-in Digi TrustFence® give your security and operations teams peace of mind against evolving security threats with encrypted connections, centralized authentication, VPN support and scalable security updates.

Digi Connect EZ supports the widest range of industry standard and device-specific protocols using serial tunneling, TCP/UDP connections or Digi’s patented RealPort® COM port redirector for remote native COM port access. A built-in Python environment enables application development and customization at the device level, including event-based programmability, data conversion and full control of device connections.

Related Resources

911 Call Center Connectivity with Digi Connect® EZ 911 Call Center Connectivity with Digi Connect® EZ With more than 6,100 call centers in the U.S. handling over 600,000 calls to 911 per day, reliable connectivity is critical... WATCH VIDEO How to Configure Secure, Remote, Serial Communication via Cellular with Digi Connect EZ 4i How to Configure Secure, Remote, Serial Communication via Cellular with Digi Connect EZ 4i VIEW GUIDE Driving Automation Through Connectivity in the Utilities Industry Driving Automation Through Connectivity in the Utilities Industry Digi meets the demand for connectivity solutions in this highly regulated space by providing secure, flexible integration and safety in harsh conditions. VIEW PDF Transforming the Connectivity of the Hospitality Industry Transforming the Connectivity of the Hospitality Industry Digi connectivity is flexible, fast, easy and offers scalable solutions. VIEW PDF Achieve Secure Serial Communication over Cellular to Remote Facilities with the Digi Connect EZ 4i Achieve Secure Serial Communication over Cellular to Remote Facilities with the Digi Connect EZ 4i With Digi Connect® EZ serial servers you can expand connectivity and functionality for a range of serial applications, and do... WATCH VIDEO How to Configure RealPort for Serial Communication on Digi Connect EZ 4i How to Configure RealPort for Serial Communication on Digi Connect EZ 4i The Digi Connect® EZ serial server lets you modernize your operational infrastructure with expanded network connectivity and... WATCH VIDEO How to Configure Modbus Communication with the Digi Connect EZ 4i How to Configure Modbus Communication with the Digi Connect EZ 4i Digi Connect® EZ serial servers give you the flexibility to expand network connectivity and functionality for a wide range of... WATCH VIDEO How to Resolve Industrial Network Challenges with Digi Connect EZ How to Resolve Industrial Network Challenges with Digi Connect EZ It can be challenging to manage data from equipment that is difficult to reach or where routine maintenance is required. With... RECORDED WEBINAR Introducing Digi Connect EZ Introducing Digi Connect EZ Whether you're working in the energy, smart cities, healthcare, industrial, or retail sector, you need a way to quickly send... WATCH VIDEO Introducing RealPort Introducing RealPort In the past, connecting serial devices was complex and involved a number of complicated requirements. Today, this process is... WATCH VIDEO Digi Connect EZ and Digi Remote Manager Digi Connect EZ and Digi Remote Manager Managing deployed IoT devices can be a serious challenge for network managers. Learn how to quickly and easily simplify this... WATCH VIDEO Digi Connect EZ Modbus Solutions Digi Connect EZ Modbus Solutions The popular Modbus protocol is used in many industrial applications today, from oil and gas to wastewater management and... WATCH VIDEO Digi Connect EZ: The Next Generation of Serial Device Servers Digi Connect EZ: The Next Generation of Serial Device Servers With the variety of connected devices deployed to the field, and the range of tasks network managers need to accomplish in... WATCH VIDEO Getting Started with Digi Connect EZ Getting Started with Digi Connect EZ If you’re just getting started with the Digi Connect® EZ family of serial device servers, this short video will provide... WATCH VIDEO Introducing the Digi Connect EZ Family of Serial Device Servers Introducing the Digi Connect EZ Family of Serial Device Servers When you need a reliable serial connection for your mission-critical equipment, paired with ease-of-use, Digi Connect EZ is the... READ BLOG Press Release Digi International Unveils Connect EZ Family of Device Servers Industrial-networking solution boots in seconds and configures in minutes, bringing market-leading scale and functionality to... READ PRESS RELEASE Digi Connect EZ Datasheet Digi Connect EZ Datasheet Click-to-connect | Modern, secure serial connectivity that boots in seconds, configures in minutes and runs for years VIEW PDF Digi RealPort with Encryption Digi RealPort with Encryption Secure and protect critical serial data in transit VIEW PDF Digi RealPort Digi RealPort Digi RealPort is the only COM port redirector that allows multiple connections to multiple ports over a single TCP/IP connection. VIEW PDF

All related resources
Connect EZ Mini
EZ01-MA00-GLB Digi Connect EZ Mini
  • Serial server, 1-port, with accessories
EZ01-MA00-GLB HOW TO BUY
Contact Us
Connect EZ 2
SKU: EZ02-CA00-GLB Digi Connect EZ 2
  • Serial server, 2-port, with accessories
EZ02-CA00-GLB HOW TO BUY
Contact Us
SKU: EZ02-CAG4-GLB Digi Connect EZ 2
  • Serial server, 2-port, with accessories
  • LTE
EZ02-CAG4-GLB HOW TO BUY
Contact Us
Connect EZ 4
SKU: EZ04-WA00-GLB Digi Connect EZ 4
  • Serial server, 4-port, with accessories
  • Wi-Fi
EZ04-WA00-GLB HOW TO BUY
Contact Us
SKU: EZ04-WAG4-GLB Digi Connect EZ 4
  • Serial server, 4-port, with accessories
  • LTE
  • Wi-Fi
EZ04-WAG4-GLB HOW TO BUY
Contact Us
Connect EZ 4i
SKU: EZ04-IA00-EXT Digi Connect EZ 4i
  • Serial server, 4-port, ​with accessories
  • Industrial-rated
  • Wi-Fi
EZ04-IA00-EXT HOW TO BUY
Contact Us
SKU: EZ04-IAG4-EXT Digi Connect EZ 4i
  • Serial server, 4-port, with accessories
  • Industrial-rated
  • LTE
  • Wi-Fi
EZ04-IAG4-EXT HOW TO BUY
Contact Us
Accessories
SKU: 1002-CMG4-GLB Digi CORE plug-In LTE modem; Global LTE Cat 4, 3G / 2G fallback
  • LTE Cat 4 with 3G/2G fallback (Global)
  • Industrial temperature: -40° C to 70° C (-40° F to 158° F)
  • Cellular certifications: PTCRB, AT&T, Verizon, Telus, US, Canada, Europe
1002-CMG4-GLB HOW TO BUY
Contact Us
SKU: 76000926 Antenna - Cellular, 3G/4G/LTE (indoor) 76000926 HOW TO BUY
Contact Us
SKU: 76002118 Antenna - dipole, 4G, magnetic mount, 1 meter cable 76002118 HOW TO BUY
Contact Us

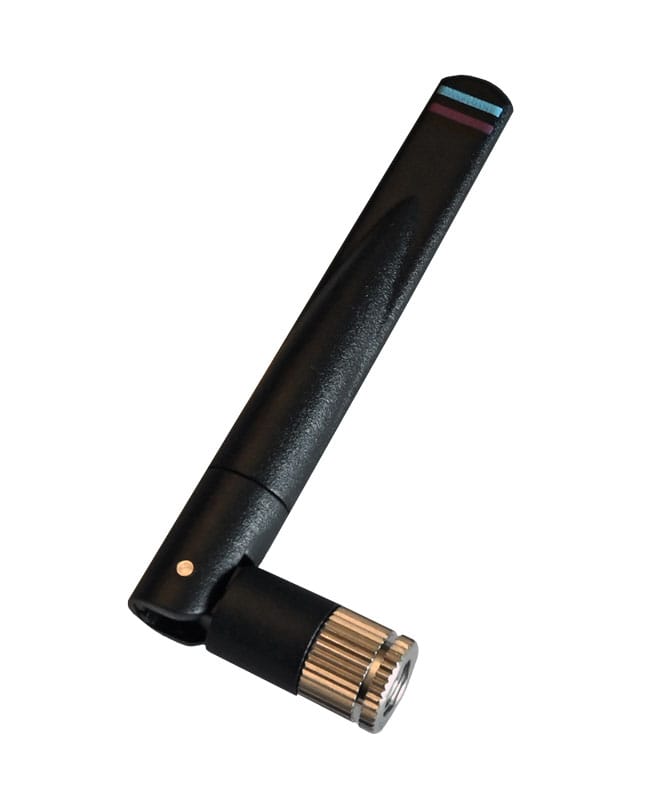

SKU: 29000938 Antenna - whip 2.4 and 5 GHz dipole 5 dBi 29000938 HOW TO BUY
Contact Us
SKU: 24000136 Power Supply - 12 VDC 3 A wall plug, locking barrel, with tips for US, UK, EU and AU 24000136 HOW TO BUY
Contact Us
SKU: 76000823

AC Power Supply - Std temperature, universal plugs (US, EU, UK, AU) to 12 VDC - 2.1 mm locking barrel plug

76000823 HOW TO BUY
Contact Us
SKU: 76002093 DIN rail mounting bracket kit 76002093 HOW TO BUY
Contact Us
SKU: 76002095 DIN rail clip kit 76002095 HOW TO BUY
Contact Us
Serial Cables and Adapters
SKU: 76000697 DB-9F Console Adapter (Quantity: 4) 76000697 HOW TO BUY
Contact Us
SKU: 76000698 DB-25M Console Adapter (Quantity: 4) 76000698 HOW TO BUY
Contact Us
SKU: 76000699 DB-25F Console Adapter (Quantity: 4) 76000699 HOW TO BUY
Contact Us
SKU: 76000700 DB-25M Modem Adapter (Quantity: 4) 76000700 HOW TO BUY
Contact Us
SKU: 76000701 DB-9M Modem Adapter (Quantity: 4) 76000701 HOW TO BUY
Contact Us
SKU: 76000195 RJ-45 to DB-25 Male Straight, 4' (Replacement for 76000129) 76000195 HOW TO BUY
Contact Us
SKU: 76000199 RJ-45 to DB-25 Female Straight, 4' (Replacement for 76000198) 76000199 HOW TO BUY
Contact Us
SKU: 76000201 RJ-45 to DB-9 Female Straight, 4' (Replacement for 76000200) 76000201 HOW TO BUY
Contact Us
SKU: 76000238 RJ-45 to DB-25 Male Crossover, 4' 76000238 HOW TO BUY
Contact Us
SKU: 76000240 RJ-45 to DB-9 Male Straight, 4' (Replacement for 76000239) 76000240 HOW TO BUY
Contact Us
SKU: 76000264 RJ-45 to DB-9 Male Crossover, 4' 76000264 HOW TO BUY
Contact Us
SKU: 76000631 6' cable RJ-45 to RJ-45 for Sun Netra/Cisco 76000631 HOW TO BUY
Contact Us
SKU: 76000645 RJ-45 to DB-9 Female Crossover, 4' 76000645 HOW TO BUY
Contact Us
SKU: 76000723 Connect EIA 422/485 Devices to Digi MEI products that have 10 pin RJ45 connectors 76000723 HOW TO BUY
Contact Us
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.   GET STARTED
SPECIFICATIONS Digi Connect EZ EZ Mini EZ 2 EZ 4 EZ 4i
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager®; SNMP v3 (user installed/managed)
LOCAL MANAGEMENT Digi Navigator™ discovery and configuration tool, Web UI (HTTP/HTTPS), CLI (Telnet, SSH)
MANAGEMENT / TROUBLESHOOTING TOOLS Digi Navigator discovery and configuration tool, FTP client, SCP, protocol analyzer with PCAP for Wireshark, event logging with syslog and SMTP client, NTP/SNTP, Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
MEMORY   256 MB RAM, 4 GB Flash
SECURITY
AUTHENTICATION TACACS+, LDAP, Enterprise RADIUS
ETHERNET
PORTS RJ-45, 10/100/1000 Mbps (auto-sensing) 1-port 2-port 2-port 2-port
SERIAL SIGNAL CAPABILITIES
PORTS RS-232 DTE/RS-422/RS-485 capable, software selectable (1) DB9 (2)RJ45-10 (4) RJ45-10 (4) RJ45-10
RS-232 / EIA-232 SERIAL MODES Signal support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI flow control options: XON/OFF, CTS/RTS, RTS-toggle
RS-422 / EIA-422 SERIAL MODES TX+/-, RX+/-, software termination, pre-delay/post-delay
RS-485 / EIA-485 SERIAL MODES Data+/Data-, software termination, pre-delay/post-delay
CELLULAR
CERTIFICATIONS Visit www.digi.com/resources/certifications for latest certifications - When used with Digi CORE plug-in LTE modem
LTE (G4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMG4 LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B38, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19;
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
CONNECTORS (1) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Secured in cellular module
WI-FI
MODULE 1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz) - -
MODES Client mode and access point mode simultaneously - -
CLIENTS Maximum 10 clients (access point mode: regardless of combination of clients and access points) - -
ACCESS POINTS Maximum 2 access points (access point mode: regardless of combination of clients and access points) - -
SECURITY WPA-3/WPA-2 personal, WPA/WPA-2 enterprise - -
CONNECTORS (1) 50 Ω SMA (center pin: male) - -
PHYSICAL
DIMENSIONS (L x W x H)   13.7 x 9.5 x 3 cm (5.39 x 3.74 x 1.18 in) 19.2 x 13.4 x 3.5 cm (7.56 x 5.28 x 1.38 in)
PACKAGE DIMENSIONS   21.4 x 18.4 x 6.5 cm (8.43 x 7.24 x 2.56 in) 35.5 x 20.4 x 6.7 cm (13.98 x 8.03 x 2.64 in)
PACKAGE WEIGHT   0.6 kg (1.32 lb) 1.3 kg (2.87 lb)
STATUS LEDs Each Ethernet and Serial port has two status LEDs Power, Serial Power, Signal, LTE, Ethernet, Serial Power, Signal, LTE, Wi-Fi, Ethernet, Serial
POWER REQUIREMENTS
POWER INPUT Locking barrel: 9 - 30 VDC, locking 2.1 mm center barrel connector -
Phoenix connector: 9 - 30 VDC, Connector: 2-position rewireable plug with securing screws included - - -
POWER CONSUMPTION   9 V @ 1 A max, typical 1.7 W 9 V @ 1.5 A max, 5 W typical with Digi CORE modem, 4.5 W typical without Digi CORE modem
ENVIRONMENTAL
OPERATING TEMPERATURE Standard operating temperature of Connect EZ device 0° C to 40° C (32° F to 104° F) 0° C to 40° C (32° F to 104° F) 0° C to 40° C (32° F to 104° F) -35° C to 74° C (-31° F to 165° F)
With Digi CORE plug-in LTE modem - 0° C to 40° C (32° F to 104° F) 0° C to 40° C (32° F to 104° F) -35° C to 70° C (-31° F to 158° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR Visit www.digi.com/resources/certifications for latest certifications
SAFETY IEC62368-1, IEC60950-1, CB, EN62311, UL62368-1, UL60950-1
INDUSTRIAL CERTIFICATION Class 1, Division 2 - - -
ENVIRONMENTAL RoHS3
EMISSIONS / IMMUNITY CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
WARRANTY
PRODUCT WARRANTY 5-year for base Connect EZ device, 3-year for Digi CORE plug-in LTE modem



ENTERPRISE SOFTWARE DESCRIPTION
NETWORK PROTOCOL SUPPORT HTTPS, FTP client, SSL, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH, remote management via Digi Remote Manager® ; Protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS,Dynamic DNS client compatible with BIND9/No-IP/DynDNS; Captive portal, Intelliflow; Nagios, DNS server, NTP server, Multicast, mDNS, IPerf
SERIAL AND DATA PROTOCOL SUPPORT RealPort, Socket and Autoconnect Socket Connectivity for TCP and Encrypted TCP, SSH, Telnet, UDP, Modbus, Pyserial support via built-in Python interpreter
SECURITY IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; TLS 1.2 and above, FIPS 197, open VPN client and server; VPN tunnels; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN IPsec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MDS, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
ROUTING / FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; Multicast routing; Routing protocols: RIP (v1, v2) OSPF, BGP, IP failover: VRRP; automatic failover; Digi SureLink®
OTHER PROTOCOLS DHCP; dynamic DNS client compatible with No-IP/DynDNS
